Axon Heat Tunnel

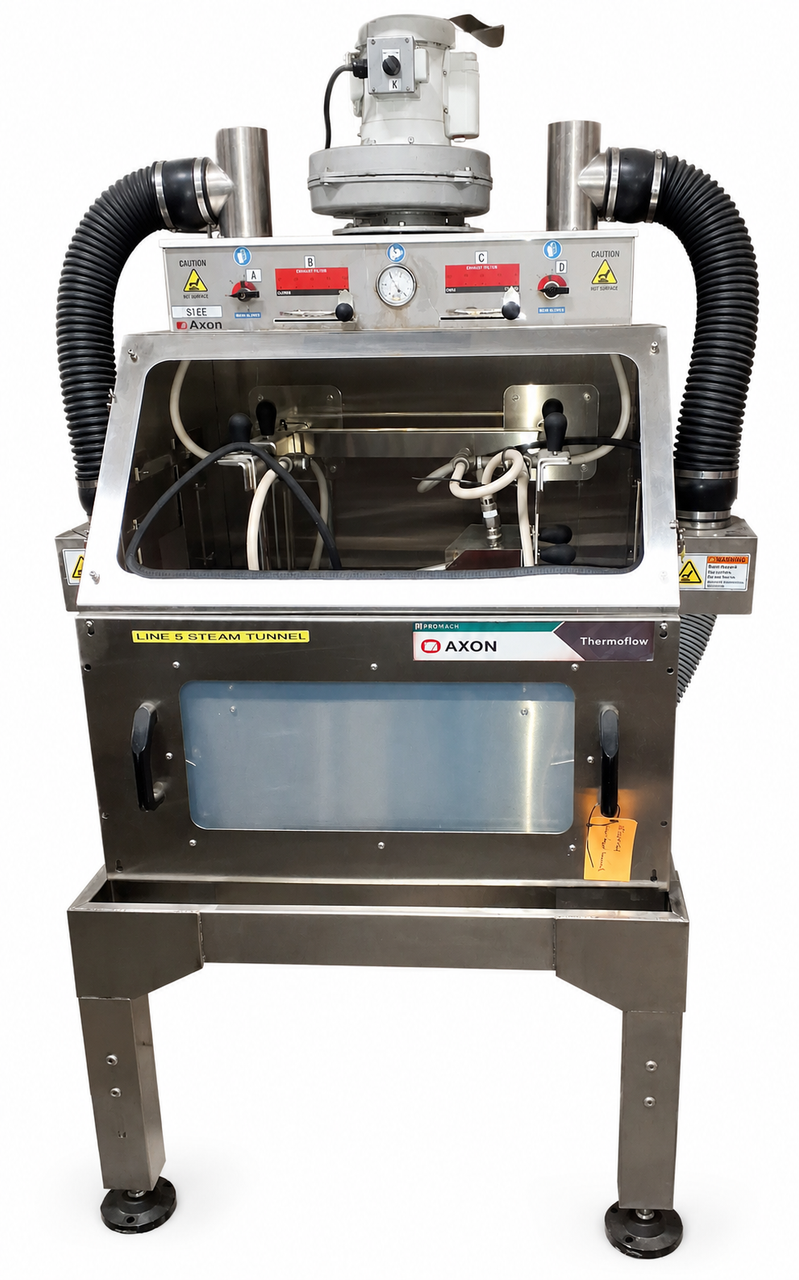

High-quality Axon ThermoFlow R-30 stainless steel steam shrink tunnel in excellent operating condition. Equipped with an integrated 30 kW low-pressure steam generator, eliminating the need for a plant steam supply.
Steam Generator 30 kW integrated boiler Boiler Pressure 10–15 psi low-pressure steam
Container Capacity Up to 6" diameter × 12" tall
Tunnel Opening Approximately 6.5" wide × 13" high
Tunnel Length Approximately 36"
Electrical 480 VAC, 3-phase
Water Consumption About 11 gal/hr

Features a 6.5" W x 13" H x 36" L shrink tunnel, (3) adjustable steam zones, and mounted on a stainless steel frame. Designed to handle round, square, oval, and irregular containers from 1" to 6" diameter and 2" to 12" tall.

Ideal for full-body shrink sleeves, tamper bands, over-cap sleeves, and multipack applications. Operates on 480V, 3-phase power.
